Powder coating is one of the most popular methods for applying attractive, durable, and resilient finishes to a host of products and surfaces. Offering exceptional versatility and uniformity, powder coating eliminates many of the challenges of traditional finishing options, like paint or varnish, minimizing the risk of streaks, bumps, and gaps.
Plus, the powder coating process doesn’t just improve the aesthetic appeal of surfaces, it also helps to provide additional protection against corrosion, scratches, and other forms of damage. Of course, to get the best results from powder coating, experts do need to follow a careful process.
One of the key steps in the powder coating journey involves using masking materials to dictate exactly which parts of a surface are powder coated.
Today, we’re going to guide you through the process of masking for powder coating, and introduce some of the benefits exceptional masking can offer.
What is Powder Coating Masking?
The powder coating process involves applying electrostatically charged powder particles to a surface using special machinery. This powder is then heated to a specific temperature, causing it to fuse with the underlying material, creating a robust finish.
Powder coating masking is the process of applying unique masking materials, such as masking discs, and high-temperature tape, to certain parts of a surface. These masking materials create a barrier that prevents the powder from adhering to specific parts of the surface.
For instance, masking might be used to protect electrical contacts on a piece of machinery, or to prevent the coverage of logos. Masking is an important process for many powder coating projects for a number of reasons. It ensures companies can preserve critical features of a product that might be harmed by powder coatings (such as grates or electrical components).
It also ensures companies can maintain complete control over the results of their powder coating finish. With masking, you can create unique patterns, achieve professional results on precision fabricated parts, and even save time and money on powder coating resources.
The Benefits of Powder Coating Masking
Powder coating masking can help to elevate the outcomes of a powder coating process in various ways. Some of the main benefits include:
- Enhanced aesthetics: Masking substances, like silicone adhesive or polyester tape, can allow for the creation of unique patterns and intricate designs. This gives you more control over the finished look of any project. You can even ensure decorative lines remain perfectly straight.
- Precise fit: With masking, you can ensure crucial components or elements of a surface aren’t covered by a durable powder coating. This ensures screws, bolts, and nuts can be fastened securely in their intended locations.
- Protection of sensitive areas: Certain parts of a product may be damaged by exposure to powder coating substances. Masking plugs can help to protect electrical outlets, ports, and gaskets. Adhesive tape can prevent grates and crucial connections from being covered.
- Minimized risk of leakage: Effective masking can reduce the risk of powder coatings infiltrating the surfaces of gaskets. This is important in environments where gaskets help to create watertight or airtight seals.
- Improved efficiency: Strategic powder coating masking helps to ensure only the right parts of a surface are treated. This reduces waste, conserves powder coating materials, and minimizes production costs.
Masking Supplies for Powder Coating
To achieve the right results with powder coating masking processes, experts use a variety of materials. Each material is intended to deliver a specific result. Some of the most common options include:
- High-temperature masking tape: High temperature masking tape acts as a barrier against powder, while also ensuring the masking substance can withstand the high temperatures used in the curing process. Tape is ideal for creating straight lines, and protecting intricate details.

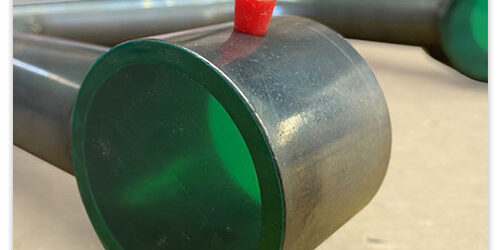

- Silicone plugs and caps: Ideal for threaded holes, ports, and cavities in a surface, silicone plugs and caps are heat resistant masking components, available in a range of shapes and sizes. They prevent residue from infiltrating sensitive parts of a product.
- Masking films and papers: Films and papers are often used to cover large areas of a powder coated surface. They come in sheets and can be cut with templates to achieve specific design results, and fit specific contours.
- Abrasive materials for surface preparation: Before applying masking substances to a surface, companies need to ensure the surface is free of any imperfections, or additional substances such as rust, old, cured paint or oils. Abrasive materials can be used to prepare a surface for better results.
The Masking Process
The masking process in a powder coating process can vary depending on the experts you choose to work with. However, usually, the steps involve:
1. Selecting the right Masking Material
The first step in the masking process is choosing the right masking materials, based on the specific needs of your project. You’ll need to ensure you’re choosing a material with excellent chemical resistance, and the ability to withstand the high temperatures used in the curing process.
It may be valuable to use various types of masking materials, such as polyimide tape, as well as plugs and masking discs, to achieve specific results.
2. Preparing the Surface
After choosing the right masking material, surfaces need to be prepared for both the application of the masking substance, and for the powder coating process. Surfaces need to be cleaned of any grease, dirt, or contaminants which may interfere with the adhesion of masking material.
It’s also worth ensuring any imperfections are removed from the surface before applying powder coatings, to preserve a uniform finish.
3. Cover Large, Flat Areas, Followed by Smaller Components
When applying masking for powder coating, it usually makes sense to cover large, flat areas first. Using films and papers, as well as high temperature tape, can help to create clean boundaries and edges on a surface, before you begin to work on more intricate details.
Once you’ve covered the larger areas, focus on sealing openings, threaded holes, and other components of your surface with caps and plugs.
4. Inspect the Masking
Before the powder coating process begins, take a moment to carefully inspect all of the masked areas. Ensure there aren’t any bubbles or gaps that could allow the powder to infiltrate the parts of your project you want to preserve.
Replace any peeling tape, and double check that all of the most important elements of your project have been properly protected.
5. Apply the Powder Coating and Cure
Once you’re happy with the results of the masking process, the next step is applying the powder coating. It’s important to apply the powder evenly and consistently to the key areas of your item, following guidelines provided by a manufacturer carefully.
Once the material has been fully coated in the powder, transfer it to the curing oven so the powder can melt and fuse with the surface of your product.
6. Remove the Masking Materials and Inspect
Finally, once the curing process is done, remove the masking materials carefully. Most materials, such as green polyester tape and glass cloth tape can simply be peeled from the surface. Be careful when removing masking materials, to ensure clean edges and results.
After removing all of the masking materials and any residual adhesive residue, conduct a final inspection of your product, checking for irregularities or errors.
Pro Powder Coating Masking Tips for Best Results
The easiest way to get the best results when masking for powder coating, is to work with professionals. While taking a DIY approach might seem more cost effective, you’ll be more likely to end up with mistakes and gaps in your finished design.
Whether you’re working with a professional, or taking the DIY route, you can boost your chances of a successful outcome by:
- Properly aligning masking materials: Make sure you align your masking materials carefully, to ensure clean edges and straight lines in your application.
- Using heat-resistant products: Powder coated products need to be cured in high-temperature ovens before they’re finished. Make sure your masking materials can withstand heat.
- Ensure consistent coating thickness: Apply powder coatings carefully and evenly, to ensure you get a consistent result on all parts of your product.
If you want to ensure you’re getting the best results from your powder coating process, the best strategy is to work with an experienced professional. At PowderCoat Services, we have the cutting-edge equipment, expertise, and skill to ensure amazing results with every project.
We commit to delivering a consistently high quality of service for every client, and have handled a range of projects over the years, powder coating everything from small intricate pieces to huge industrial components. Our attention to detail and commitment to excellence will ensure you get the results you’ve been searching for.
Mastering Masking for Powder Coating Projects
Powder coating is an excellent way to enhance the durability and aesthetic appeal of various products. However, it’s important to ensure you follow the right processes to get the best results. Mastering power coating masking will ensure you can protect crucial parts of your product, and achieve sleek, professional results with your powder coat designs.
If you want to ensure the success of your next powder coating process, reach out to the experts. Contact PowderCoat Services today to request a quote for your unique project.
